![[SHA250dNA102] SHA-250dN-A102](/web/image/product.product/23/image_1024/%5BSHA250dNA102%5D%20SHA-250dN-A102?unique=8933e40)
SHA-250dN-A102

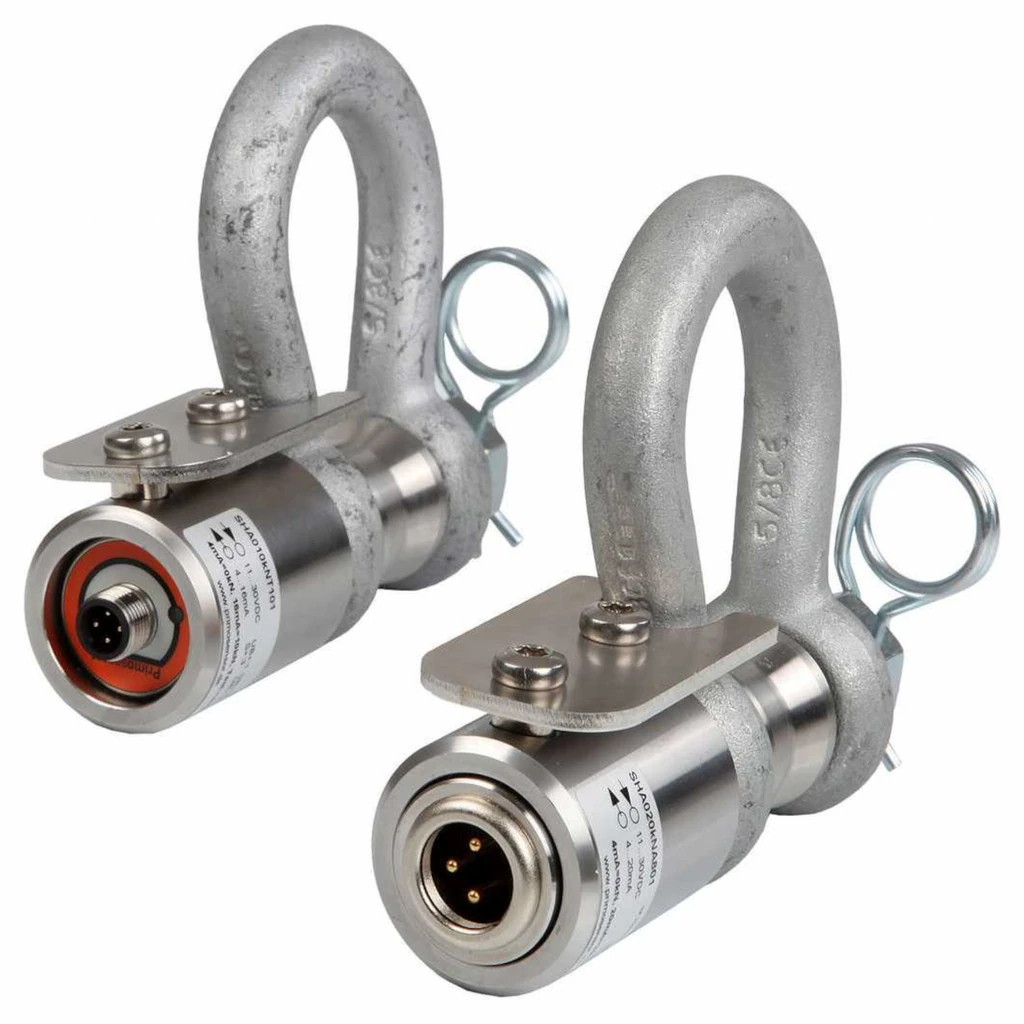

Primoforce® SHA load measuring shackle
457,84 €
Primoforce SHA – Load Shackle Force Sensors
Primoforce SHA load shackle force sensors are designed for reliable load monitoring in lifting, stage, event and structural applications. They allow direct measurement of loads introduced into suspension points, support structures and lifting systems. The SHA series covers nominal loads from 2.5 kN to 50 kN and combines robust mechanical design with industrial output options for safe and precise load measurement.
Primoforce SHA Key Specifications
Sensor type: Load shackle force sensor
Nominal load range: 2.5 kN to 50 kN
Accuracy: 1.5% F.S.
Limit load: 200% of nominal load
Breaking load: 800% of nominal load
Standard output signal: 4–20 mA
Optional outputs: Redundant 2 × 4–20 mA or CANopen
Connectors: M12x1 or XLR
Protection rating: IP65
Applications: Lifting equipment, stage and event technology, cranes and structural load monitoring
![[SHA250dNA801] SHA-250dN-A801](/web/image/product.product/24/image_1024/%5BSHA250dNA801%5D%20SHA-250dN-A801?unique=8933e40)
SHA-250dN-A801
Primoforce® SHA load measuring shackle
457,84 €
![[SHA250dNA802] SHA-250dN-A802](/web/image/product.product/26/image_1024/%5BSHA250dNA802%5D%20SHA-250dN-A802?unique=8933e40)
SHA-250dN-A802
Primoforce® SHA load measuring shackle
457,84 €
![[SHA005kNA102] SHA-005kN-A102](/web/image/product.product/27/image_1024/%5BSHA005kNA102%5D%20SHA-005kN-A102?unique=8933e40)
SHA-005kN-A102
Primoforce® SHA load measuring shackle
457,84 €
![[SHA005kNA801] SHA-005kN-A801](/web/image/product.product/28/image_1024/%5BSHA005kNA801%5D%20SHA-005kN-A801?unique=8933e40)
SHA-005kN-A801
Primoforce® SHA load measuring shackle
457,84 €
![[SHA005kNA802] SHA-005kN-A802](/web/image/product.product/29/image_1024/%5BSHA005kNA802%5D%20SHA-005kN-A802?unique=8933e40)
SHA-005kN-A802
Primoforce® SHA load measuring shackle
457,84 €
![[SHA010kNA102] SHA-010kN-A102](/web/image/product.product/30/image_1024/%5BSHA010kNA102%5D%20SHA-010kN-A102?unique=8933e40)
SHA-010kN-A102
Primoforce® SHA load measuring shackle
477,74 €
![[SHA010kNA801] SHA-010kN-A801](/web/image/product.product/31/image_1024/%5BSHA010kNA801%5D%20SHA-010kN-A801?unique=8933e40)
SHA-010kN-A801
Primoforce® SHA load measuring shackle
477,74 €
![[SHA010kNA802] SHA-010kN-A802](/web/image/product.product/32/image_1024/%5BSHA010kNA802%5D%20SHA-010kN-A802?unique=8933e40)
SHA-010kN-A802
Primoforce® SHA load measuring shackle
477,74 €
![[SHA020kNA101] SHA-020kN-A101](/web/image/product.product/33/image_1024/%5BSHA020kNA101%5D%20SHA-020kN-A101?unique=8933e40)
SHA-020kN-A101
Primoforce® SHA load measuring shackle
497,65 €
![[SHA020kNA801] SHA-020kN-A801](/web/image/product.product/34/image_1024/%5BSHA020kNA801%5D%20SHA-020kN-A801?unique=8933e40)
SHA-020kN-A801
Primoforce® SHA load measuring shackle
497,65 €
![[SHA020kNA803] SHA-020kN-A803](/web/image/product.product/35/image_1024/%5BSHA020kNA803%5D%20SHA-020kN-A803?unique=8933e40)
SHA-020kN-A803
Primoforce® SHA load measuring shackle
497,65 €
![[SHA050kNA101] SHA-050kN-A101](/web/image/product.product/36/image_1024/%5BSHA050kNA101%5D%20SHA-050kN-A101?unique=8933e40)
SHA-050kN-A101
Primoforce® SHA load measuring shackle
676,80 €
![[SHA050kNA801] SHA-050kN-A801](/web/image/product.product/37/image_1024/%5BSHA050kNA801%5D%20SHA-050kN-A801?unique=8933e40)
SHA-050kN-A801
Primoforce® SHA load measuring shackle
676,80 €
![[SHA050kNA803] SHA-050kN-A803](/web/image/product.product/38/image_1024/%5BSHA050kNA803%5D%20SHA-050kN-A803?unique=8933e40)
SHA-050kN-A803
Primoforce® SHA load measuring shackle
676,80 €
